Product Details

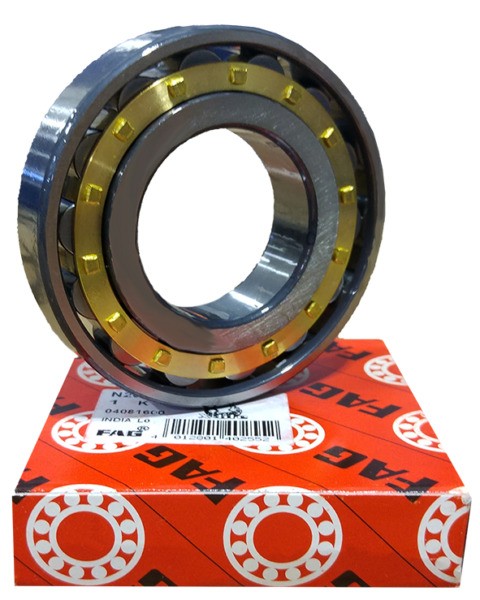

FAG NU2226-E-M1 Cylindrical roller bearing

Place of Origin GERMANY,SWEDEN,U.S.A,ITALY,FRANCE,AUSTRIA
Brand Name fag
Certification ISO9001,CE,CO,CQ
Model Number FAG NU2226-E-M1 Cylindrical roller bearing
Min.Order Quantity 1Set
Price 1-100usd/set
Packaging Details Standard package
Delivery Time within 3 working days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 1000 sets

Product Features

fag FAG NU2226-E-M1 Cylindrical roller bearing bearing Size Chart (mm/inches)

d85 mm
D180 mm
B41 mm
rs min3 mm
Radial clearance classCN
Mass4.23 kg
Dynamic load, C133 kN
Static load, C097 kN
Fatigue limit load, Cu3.85 kN
f013.3
Nlim (grease)3,800 rpm
Min operating temperature, Tmin-25 °C
Max operating temperature, Tmax110 °C
Characteristic cage frequency, FTF0.39 Hz
Characteristic rolling element frequency, BSF4.16 Hz
Characteristic outer ring frequency, BPF03.09 Hz
Characteristic inner ring frequency, BPFI4.91 Hz
da min98 mm
da max112 mm
Da max167 mm
ra max2.5 mm

FAG NU2226-E-M1 Cylindrical roller bearing

FAG NU2226-E-M1 Cylindrical roller bearing Cad Models
